Product Description

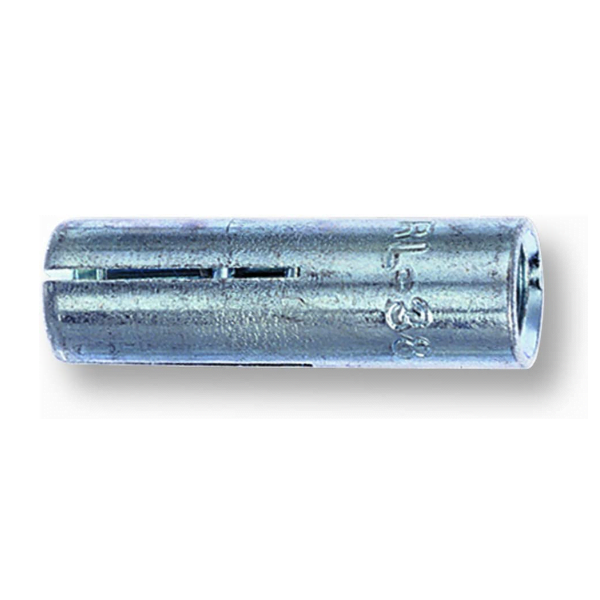

Drop-In, shell-type anchors feature an internally threaded, all-steel shell with expansion cone insert and flush embedment lip. Anchors should be installed with carbide tipped hammer drill bits made in accordance to ANSI B212.15-1994 specifications. Anchors should be tested to ASTM E488 criteria and listed by ICC-ES. Anchors should also be listed by the following agencies as required by the local building code: UL, FM, City of Los Angeles, California State Fire Marshal and Caltrans.
Features:
- Below surface setting for easy patch work
- Drop-In Anchor Type: With Out Lip
- Anchor Material: Steel
- Fastener Finish: Zinc Plated
- Anchor Thread Size: 3/4″-10
- Anchor Diameter: 1 1/4 in
- Anchor Length: 3 3/16 in
- Thread Depth: 1 1/4 in
- Bolt Diameter: 3/4 in
- Drill Bit Size: 1 in
- Min. Hole Depth: 3 3/16 in
- Setting Tool: RHRT134
Additional Information
| Brand | |
|---|---|
| Diameter | |
| Finish | Zinc |
| Length |
